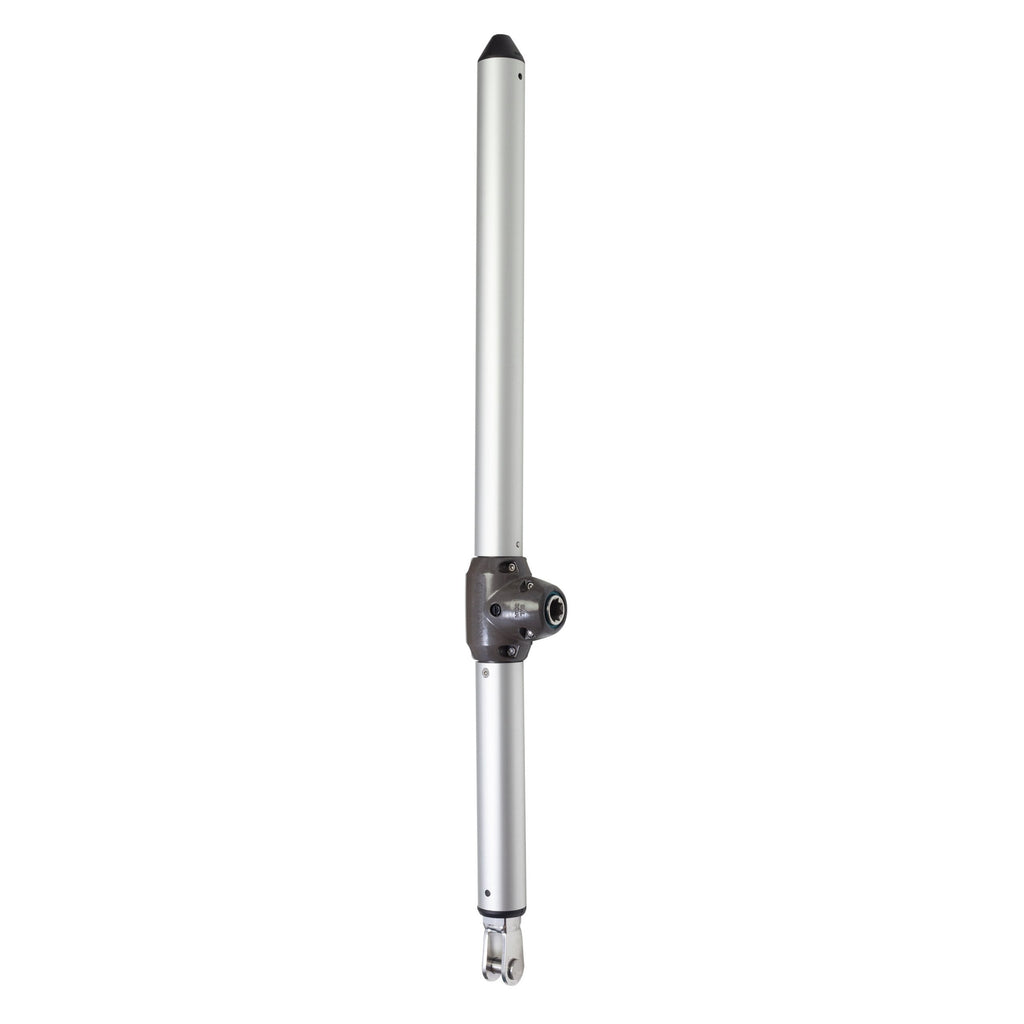

BACKSTAY TENSIONER(818/1218MM)

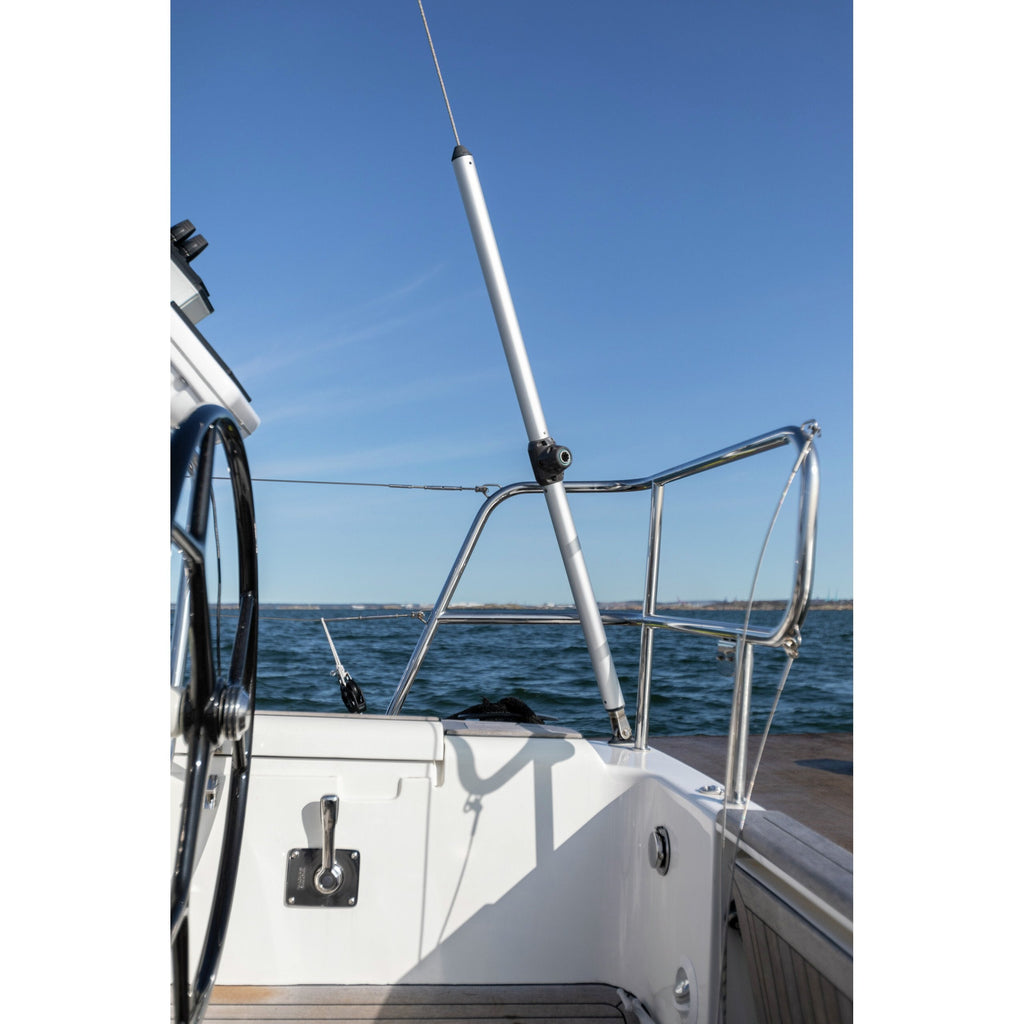

Seldén backstay tensioners have smooth, clean surfaces. Even the wire terminal is fully covered. These low-weight backstay tensioners are simple to use. All you do is insert a standard winch handle and turn. The tensioner has a maximum working load of 30 kN. The stroke for this tensioner is 400 mm.

Clevis pins and bushes are supplied with every adjuster to suit small chainplates for Ø 6 and Ø 7 mm wire.

Wire Size ø: 6,7,8 mm
Pin: 15.80 mm
Stroke: 400 mm
Length min: 818 mm
Length max: 1218 mm
BRL: 6500 kg
SWL: 3000 kg
