IWS 45 Headboard car for Seldén mast sections C137, C153, C180

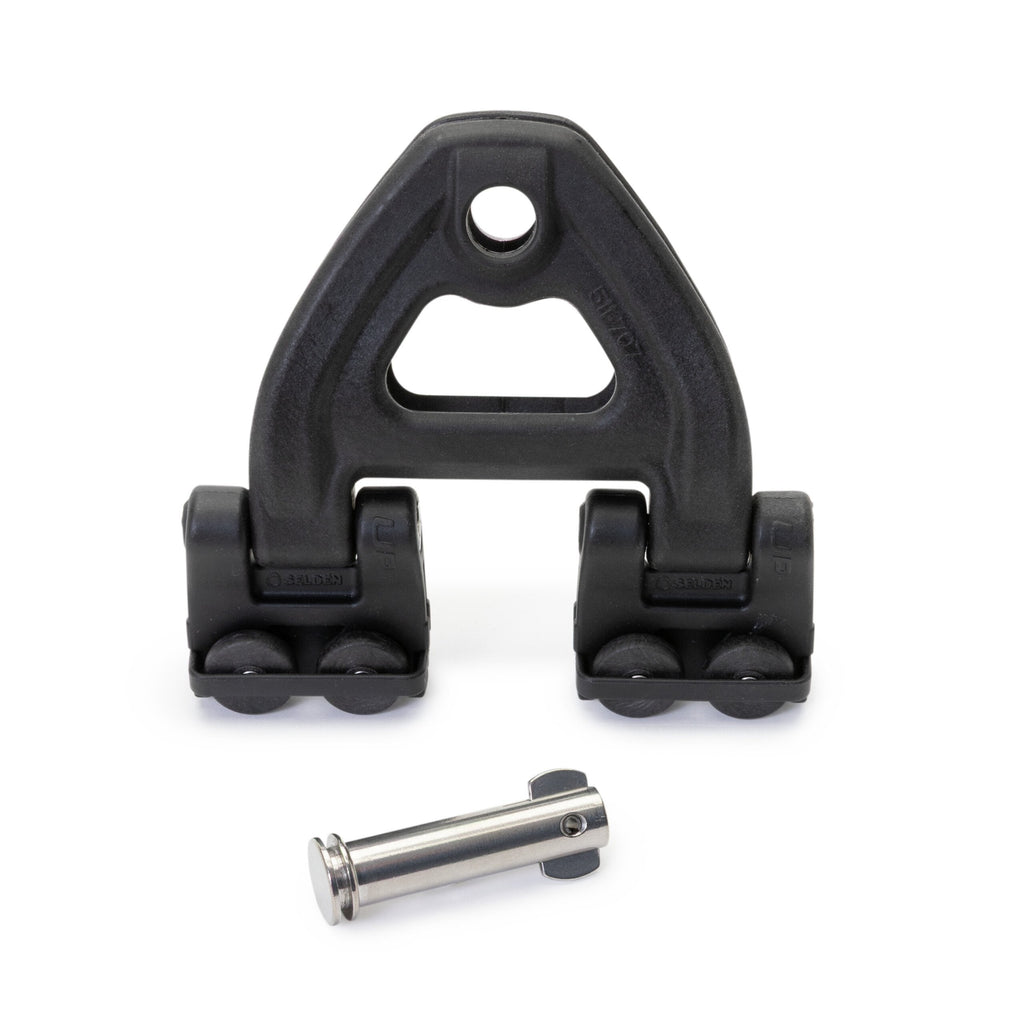

This headboard car assembly consists of two IWS 45 cars and a composite headboard toggle with a Drop-nose pin for easy connection with the headboard of the sail.

The IWS car simplifies hoisting, reefing and dousing and is used for Seldén’s newest C-sections. The side load created by the full-batten is taken up by the wheels as the slider tilts to the side and a buffer bearing centers the slider in the groove. The mast groove and the car makes for a perfect match handling loads from all direction without any extra hardware fitted to the mast.

Learn more:

https://www.seldenmast.com/products/sail-hardware/

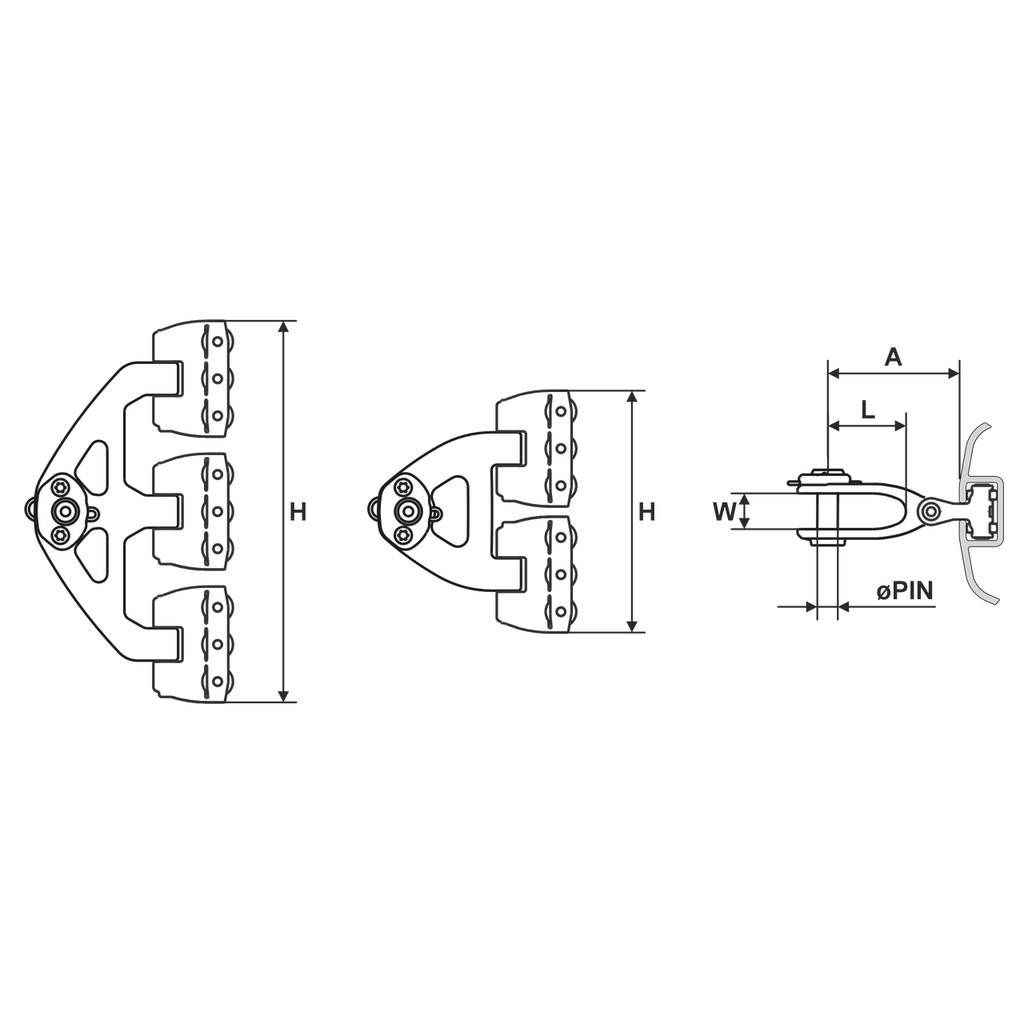

Model: IWS 45
H: 120 mm
A: 74 mm
L: 46 mm
øPIN: 12 mm
W: 21 mm
SWL+Horizontal: 4.80 kN
RM: 40.00 kNm
Mast: C137,C153,C180
