IWS 68 Fullbatten car for Seldén mast sections C192, C208, C225, C242, C261, C280

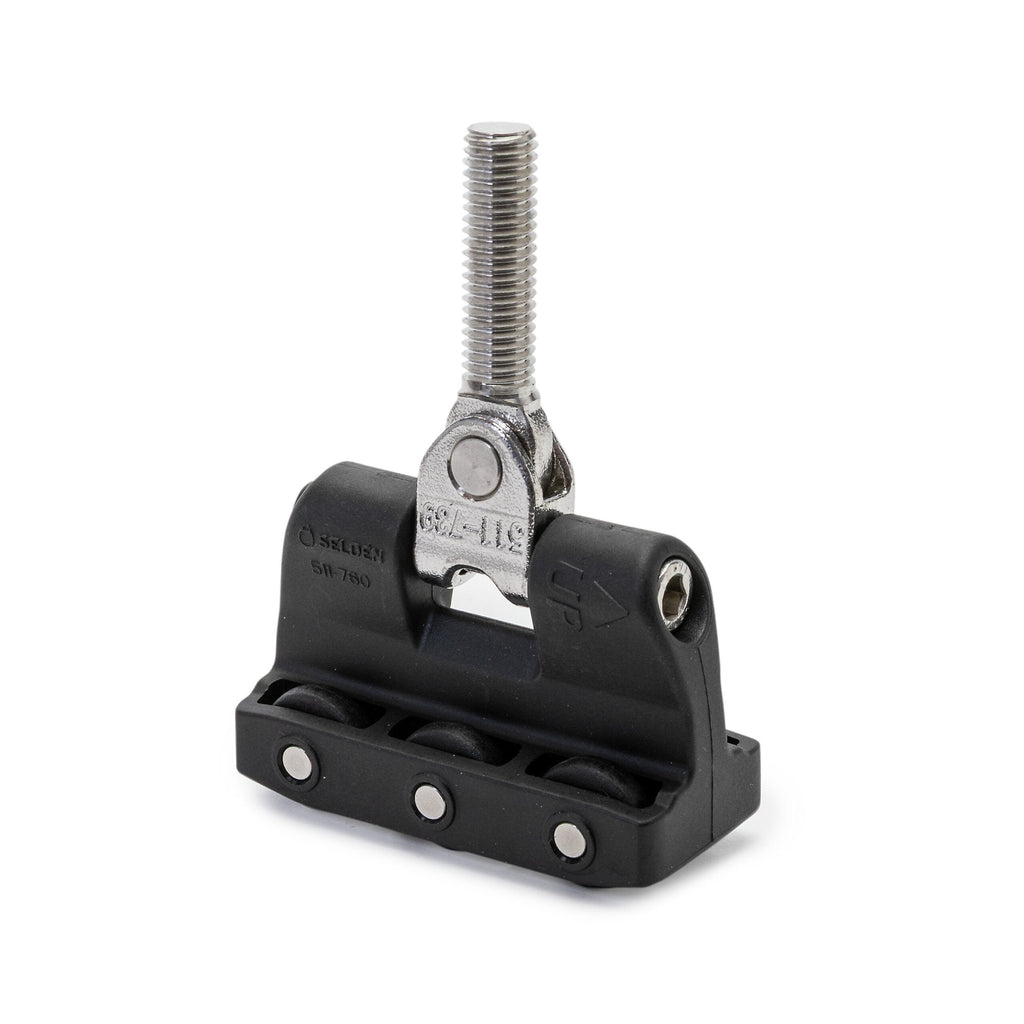

This composite fullbatten car features a M10 threaded stud and can be used with corresponding batten receptacles.

The IWS car simplifies hoisting, reefing and dousing and is used for Seldén’s newest C-sections. The side load created by the full-batten is taken up by the wheels as the slider tilts to the side and a buffer bearing centers the slider in the groove. The mast groove and the car makes for a perfect match handling loads from all direction without any extra hardware fitted to the mast.

Learn more:

https://www.seldenmast.com/products/sail-hardware/

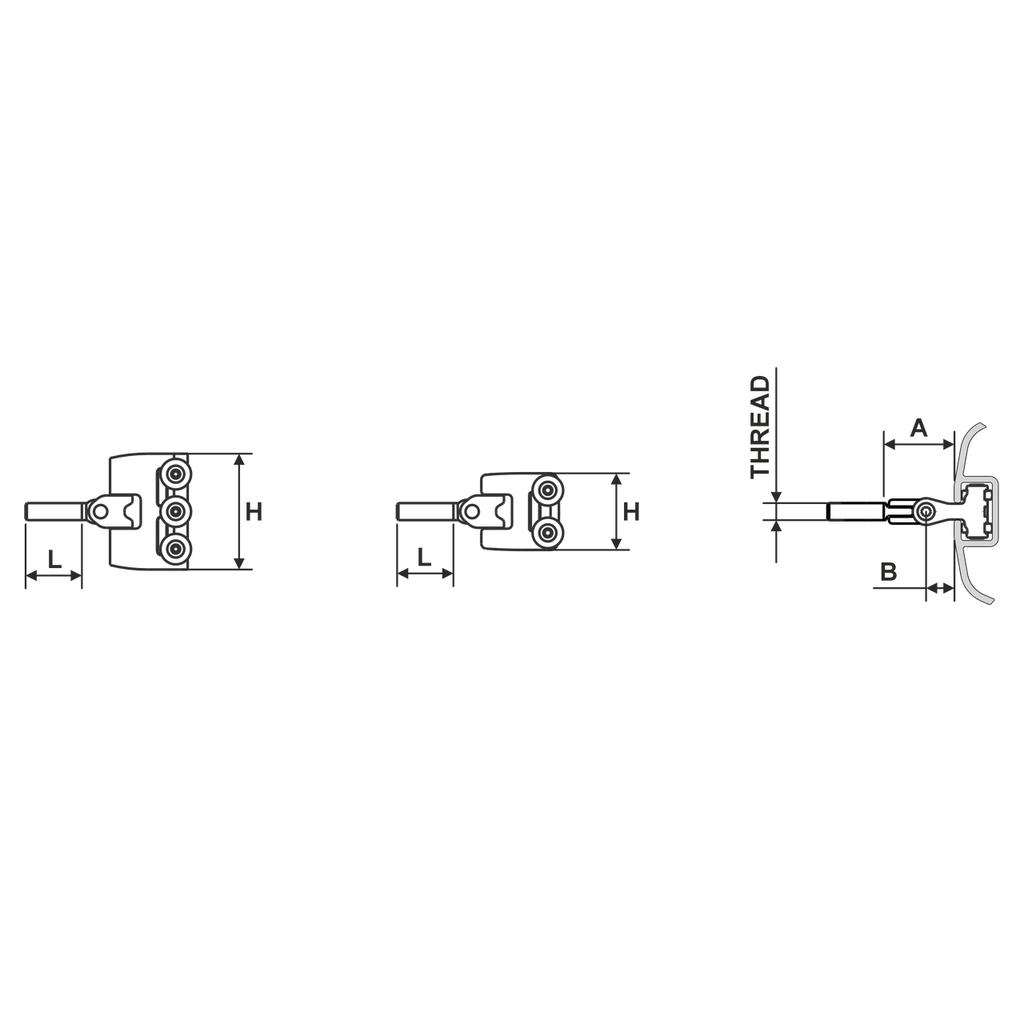

Model: IWS 68
H: 68 mm
A: 41 mm
L: 33 mm
B: 17 mm
THREAD: M10
SWL+Horizontal: 3.60 kN
RM: 126.00 kNm
Mast: C192,C208,C225,C242,C261,C280
