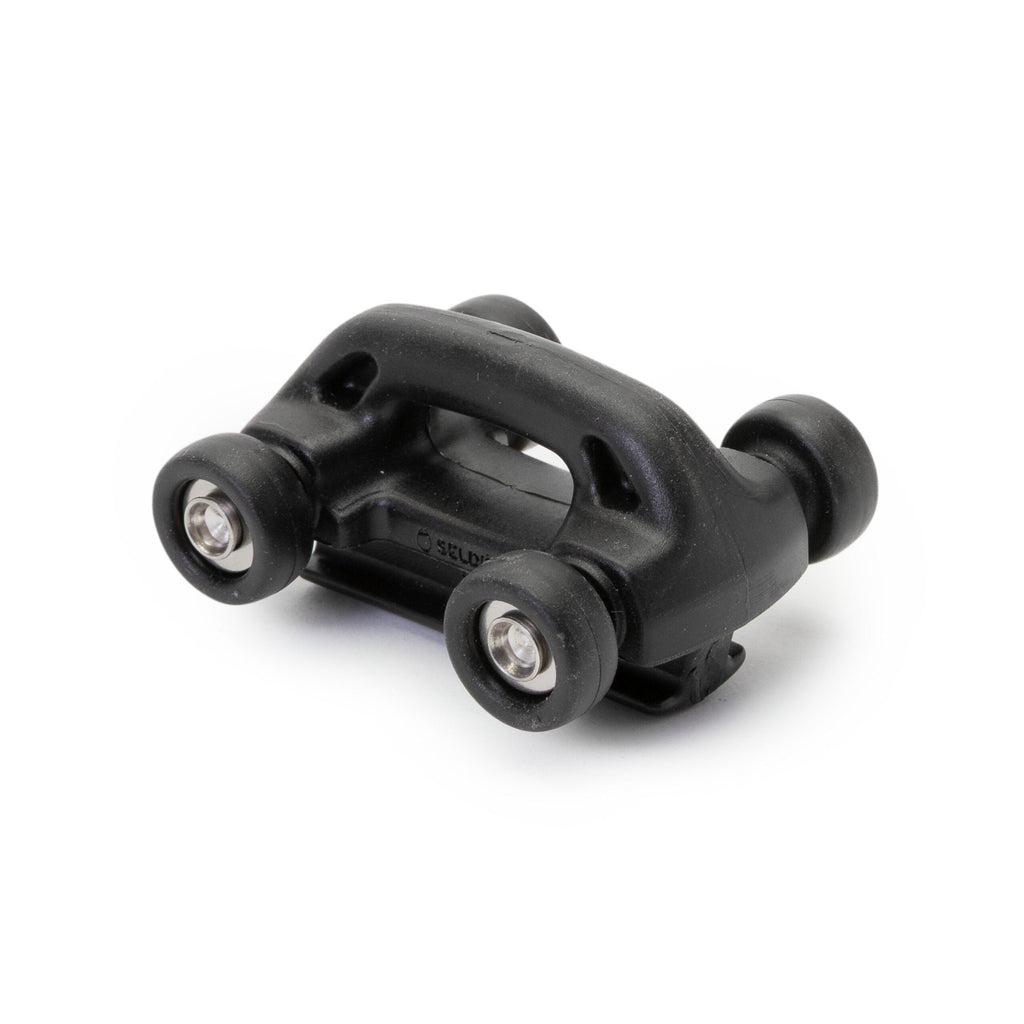

OWS Sail car, HA 89/A 007

OWS (Outer Wheel slider) is an excellent upgrade from traditional sail slides to reduce friction when hoisting and dousing the main sail.
The depth and the shape of the slug is designed to correspond to sail slide HA 89 from Holt Allen and A 007 from Bainbridge. The four wheels roll on the aft side of the mast section while the slug slides inside the luff groove.

For all technical information - https://support.seldenmast.com/en/products/sail_hardware/ows_sliders.html

To acheive maximum strength, the OWS slider should be attached to the main sail using a webbing strap. All sliders for webbing can be used for headboard attachments and as intermediate sliders.

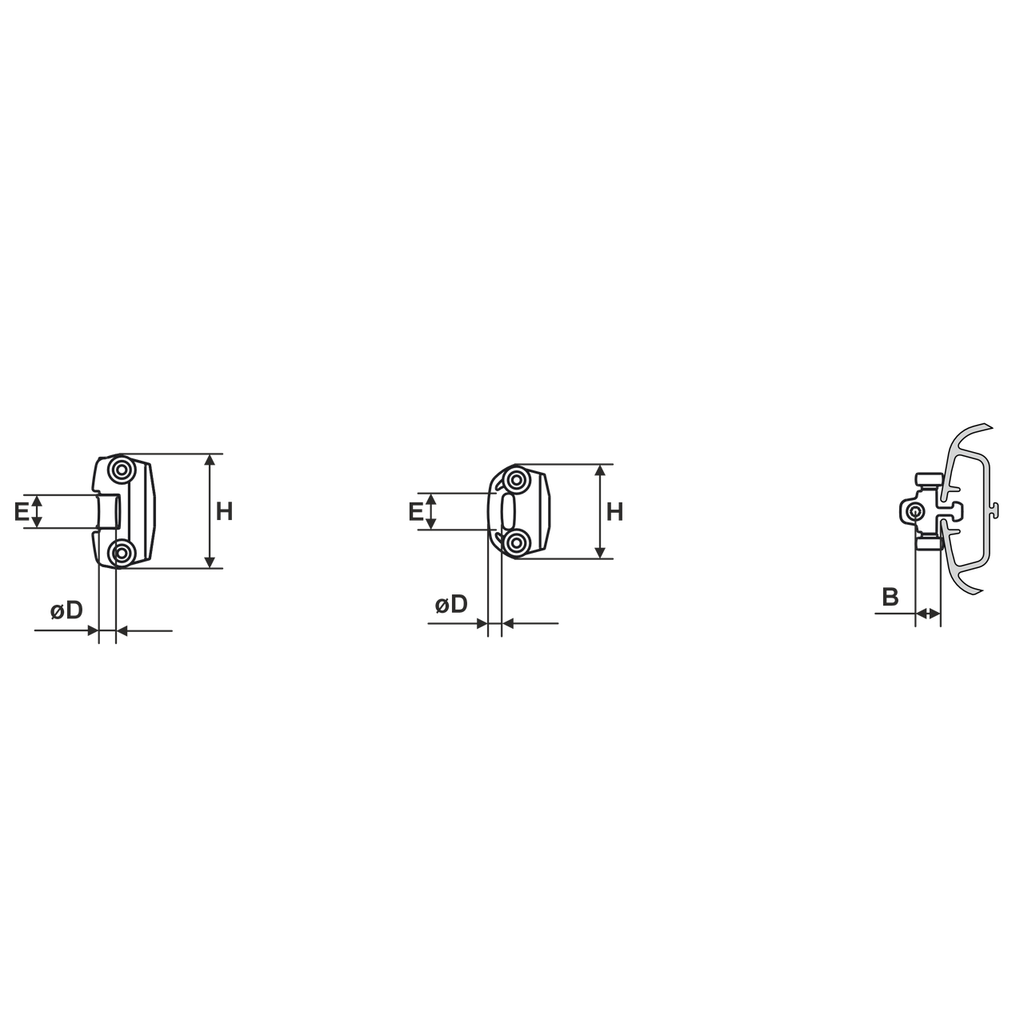

H: 55 mm
D: 8 mm
E: 21 mm
SWL+Horizontal: 2.50 kN
RM: 75.00 kNm
FitsLuffGroove: 10.00 mm
Z: 2.90 mm
X: 6.20 mm
T: 6.50 mm
Y: 14.00 mm
