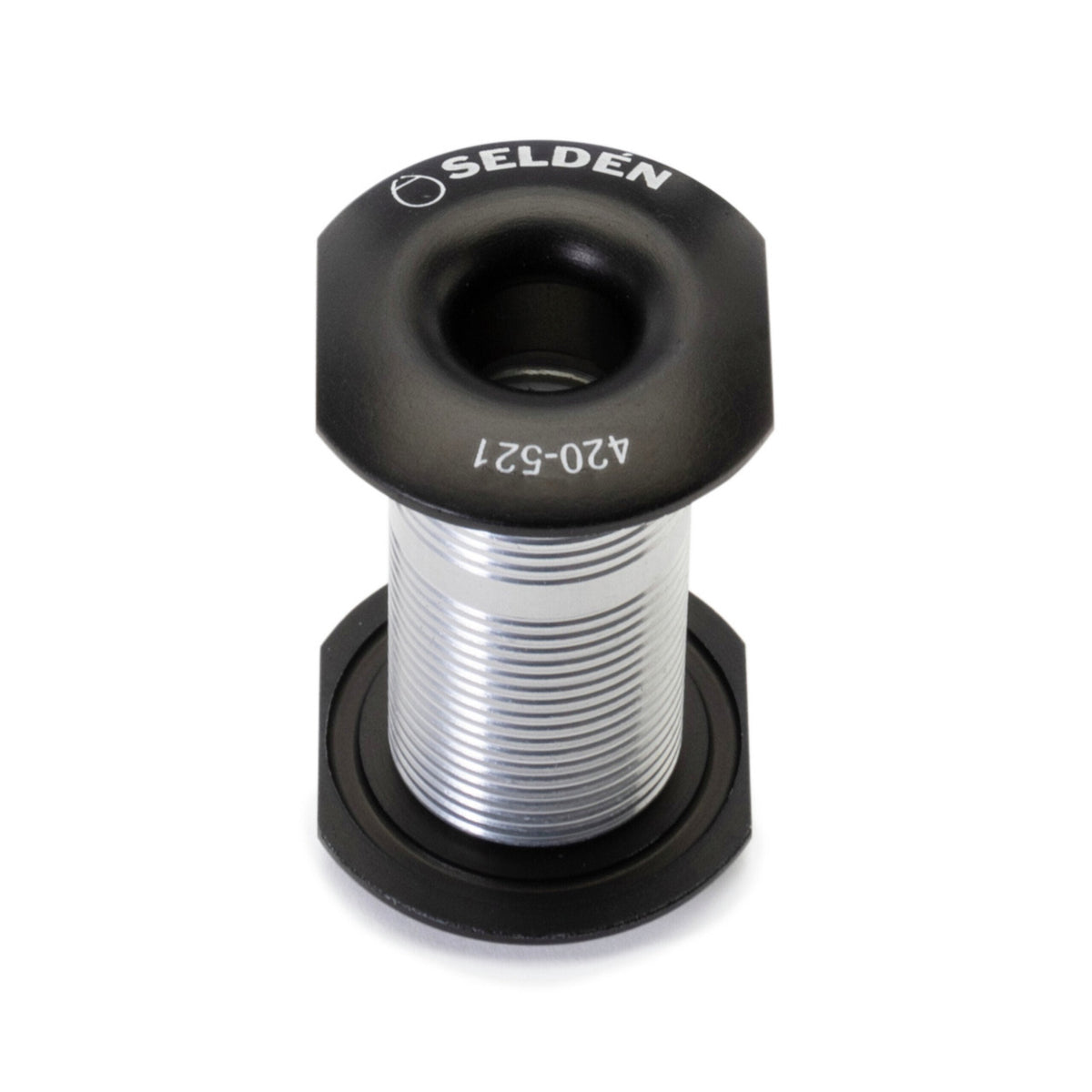

THROUGH DECK LEAD,2-SIDED,MAX LINE ø7

Double Through-Deck Lead for max ø7 mm line size.

Lower- and upper lead fittings in aluminium connected with an aluminium distance tube that can be cut to desired length. The outer side of the distance tube has a pattern that helps the installer to orientate the saw blad for an exact cut.

The fittings are hard anodized machined aluminium with wrench flats for a tight installation.

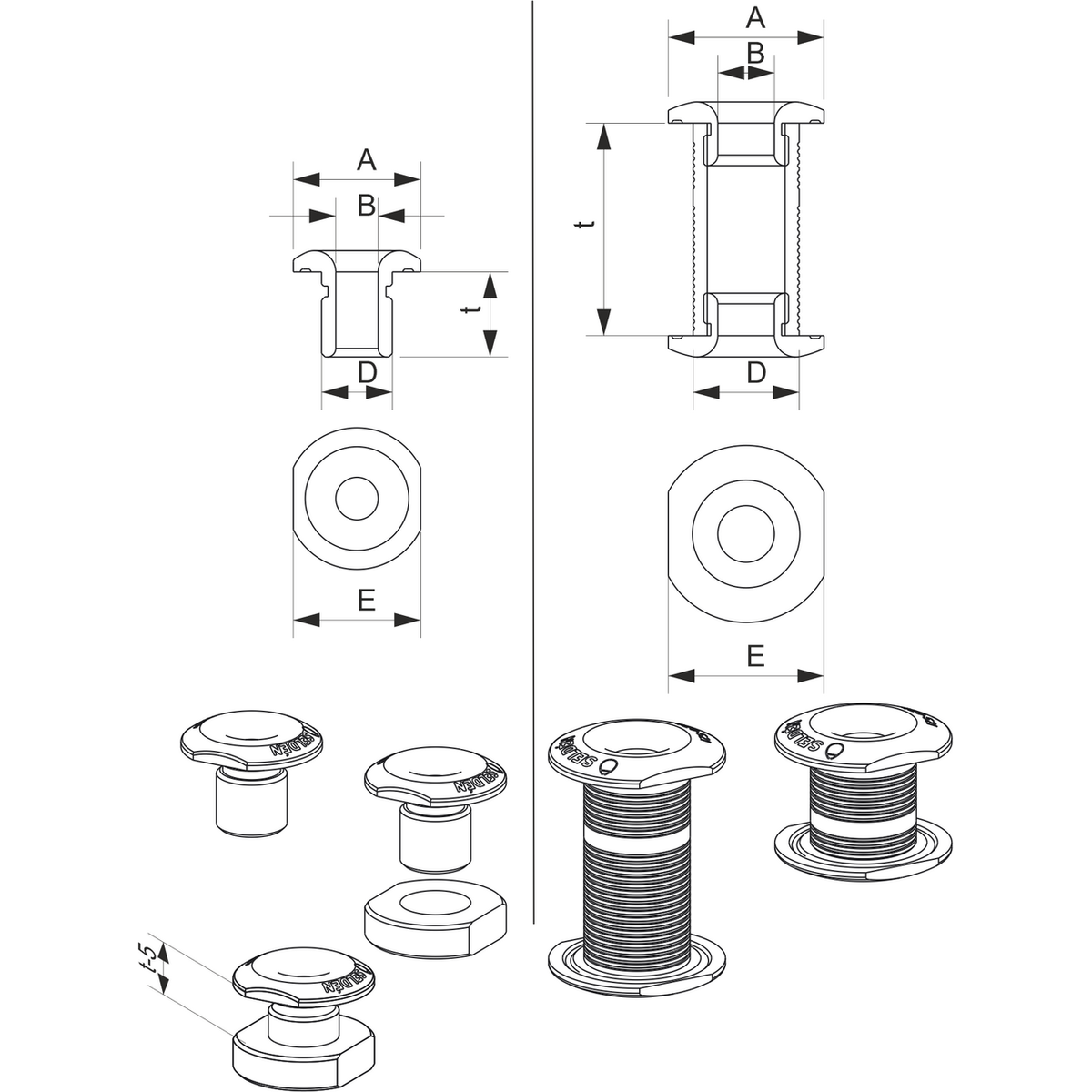

SubType: 2-sided
A: 25 mm
B: 8 mm
D: 15 mm
E: 22 mm
t: 40 mm
tmin: 12 mm
Max line size: 7 mm
